CAN Malfunction Diagnosis Flow: Flowchart

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

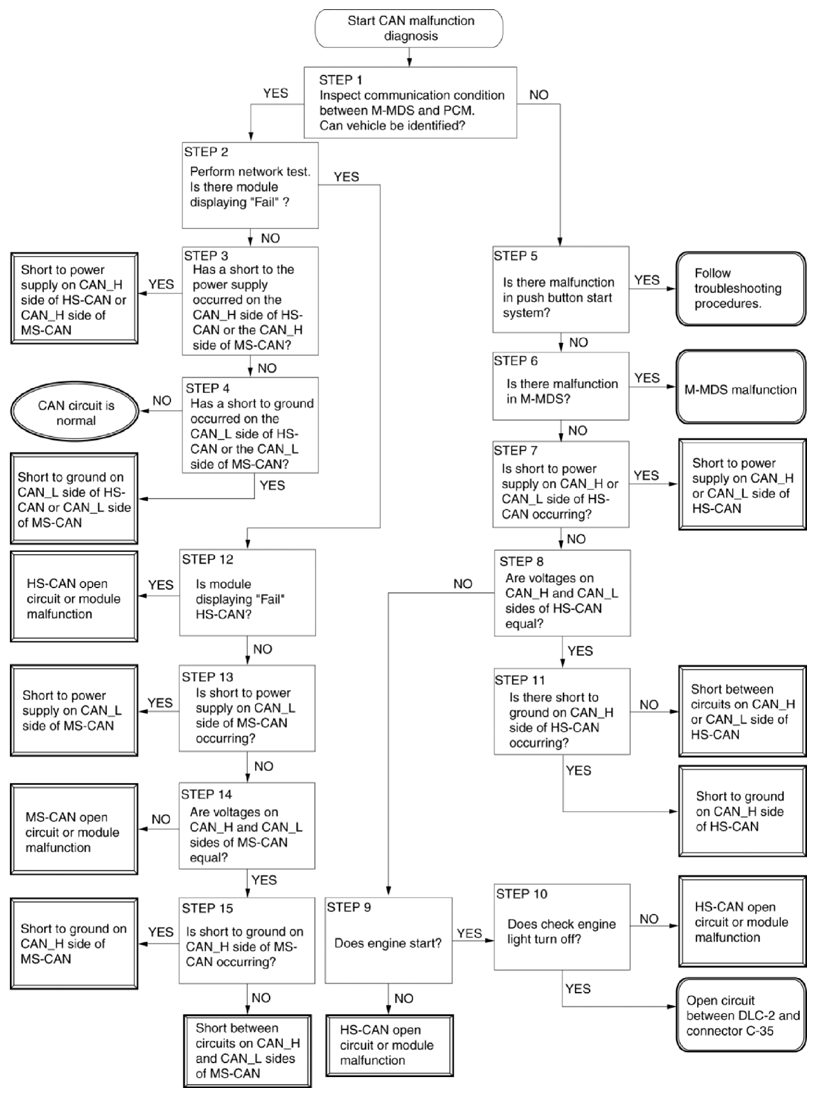

Fig 1: CAN Malfunction Diagnosis Flowchart
G10939799Courtesy of MAZDA MOTORS CORP.
