System Wiring Diagram [Laser Sensor]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

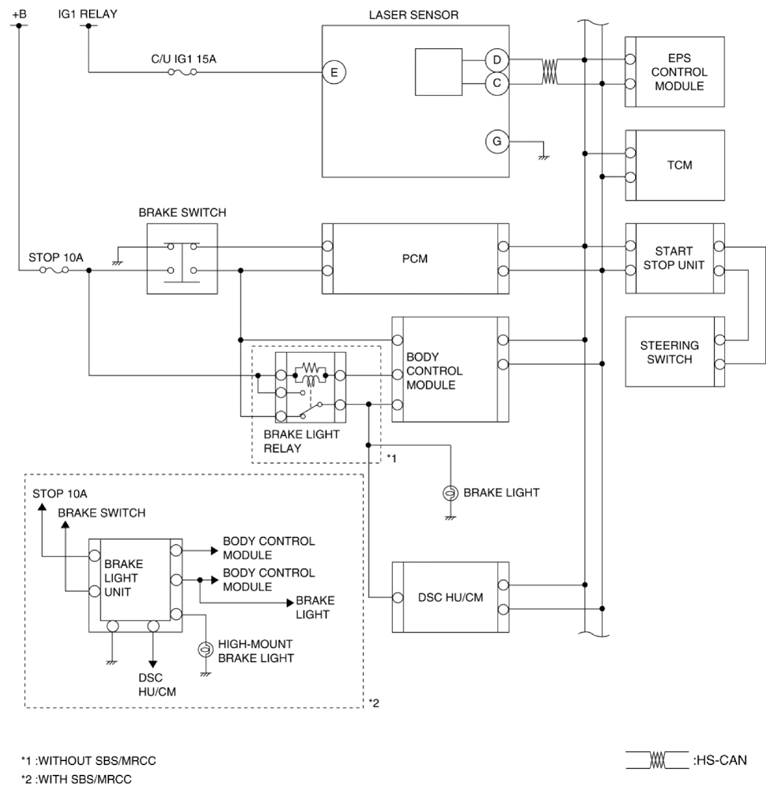

Fig 1: Laser Sensor - System Wiring Diagram
G10939915Courtesy of MAZDA MOTORS CORP.
