On-Board Diagnostic Wiring Diagram [Rear Body Control Module (RBCM)]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

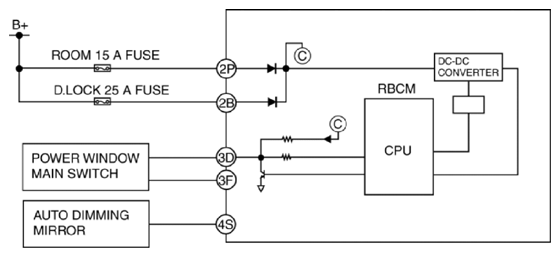

Fig 1: Rear Body Control Module Wiring Diagram - Power Window System And Auto Dimming Mirror

Courtesy of MAZDA MOTORS CORP.

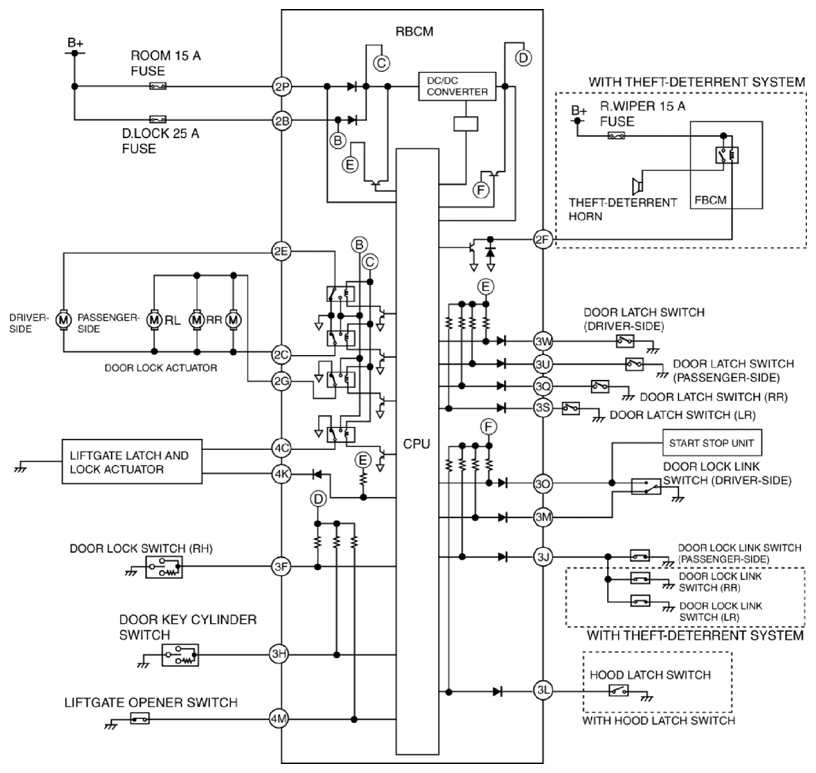

Fig 2: Rear Body Control Module Wiring Diagram - Power Door Lock System And Theft-Deterrent System

Courtesy of MAZDA MOTORS CORP.

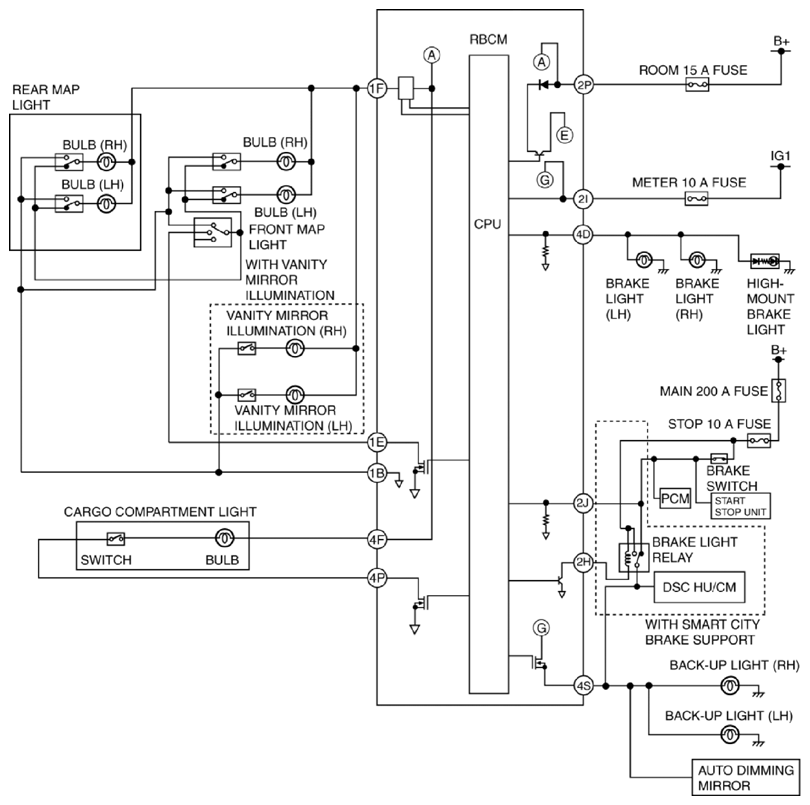

Fig 3: Rear Body Control Module Wiring Diagram - Room Lights And Brake Light System

Courtesy of MAZDA MOTORS CORP.

Fig 4: Rear Body Control Module Wiring Diagram - Rear Wiper System

Courtesy of MAZDA MOTORS CORP.

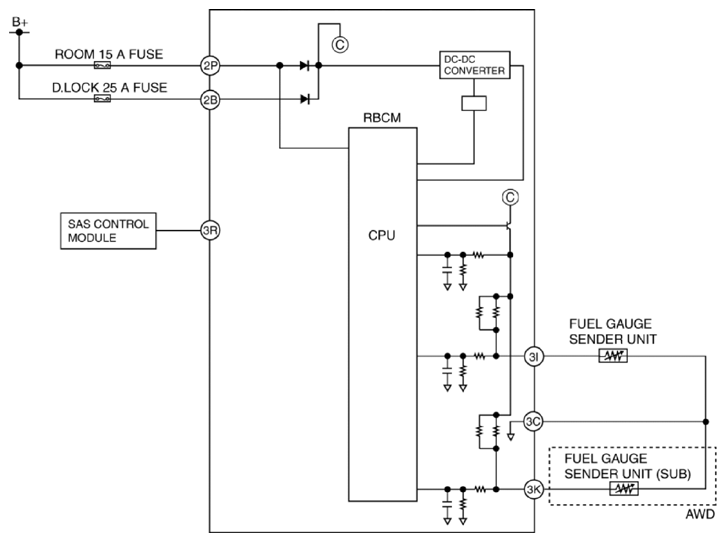

Fig 5: Rear Body Control Module Wiring Diagram - Fuel-Level Sensor System And Air Bag System

Courtesy of MAZDA MOTORS CORP.

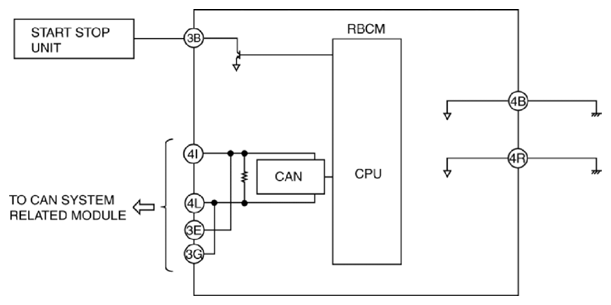

Fig 6: Rear Body Control Module Wiring Diagram - CAN System

Courtesy of MAZDA MOTORS CORP.
