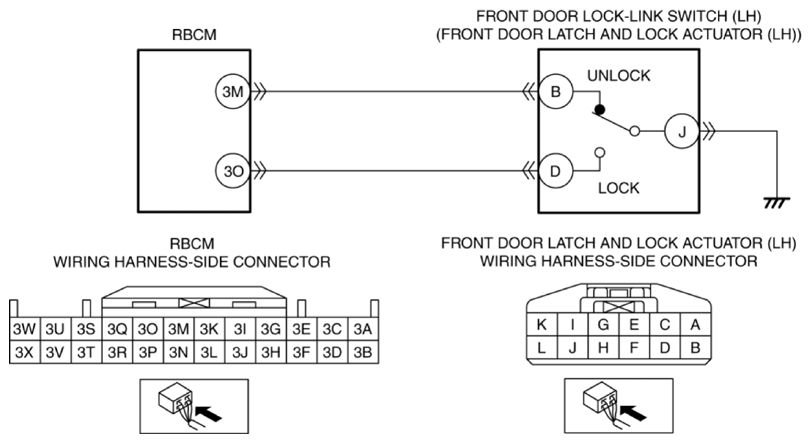

DTC B126A-13: Front Door Lock-Link Switch (LH) Lock Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Front door lock-link switch (LH) lock circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects open circuit in front door lock-link switch (LH) lock side circuit with front door lock-link switch (LH) locked.
|
| Fail-safe |
- |
| Possible cause |
- Front door latch and lock actuator (LH) connector or terminal malfunction
- Open circuit in wiring harness between front door latch and lock actuator (LH) terminal J and body ground
- Front door lock-link switch (LH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction
- Open circuit in wiring harness between rear body control module (RBCM) terminal 3O and front door latch and lock actuator (LH) terminal D
- Rear body control module (RBCM) malfunction
|
|
|
