DTC B11EA-11: Rear Door Latch Switch (RH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Rear door latch switch (RH) circuit malfunction |
| Detection condition |
- With the rear door (RH) closed (rear door latch switch (RH) off), the rear body control module (RBCM) detects a short to ground in the rear door latch switch (RH) circuit.
|
| Fail-safe |
- |
| Possible cause |
- Rear door latch and lock actuator (RH) connector or terminal malfunction
- Rear door latch switch (RH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

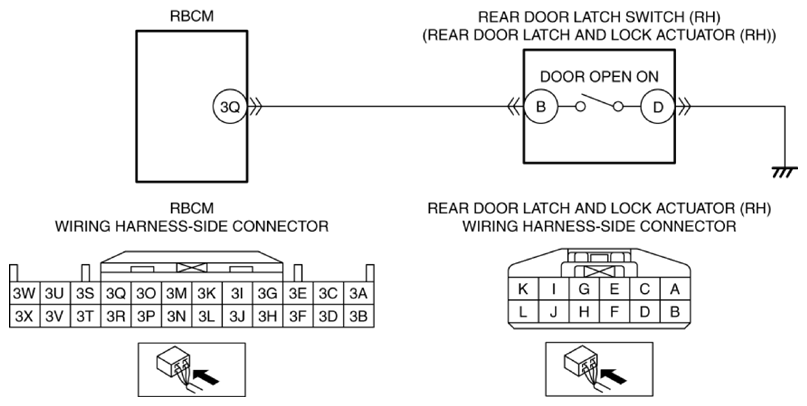

- Short to ground in wiring harness between rear body control module (RBCM) terminal 3Q and rear door latch and lock actuator (RH) terminal B
- Rear body control module (RBCM) malfunction
|
|
|
