DTC B1175-11: Front Door Latch Switch (LH) Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Front door latch switch (LH) circuit malfunction |
| Detection condition |
- With the front door (LH) closed (front door latch switch (LH) off, the rear body control module (RBCM) detects a short to ground in the front door latch switch (LH) circuit.
|
| Fail-safe |
- |
| Possible cause |
- Front door latch and lock actuator (LH) connector or terminal malfunction
- Front door latch switch (LH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

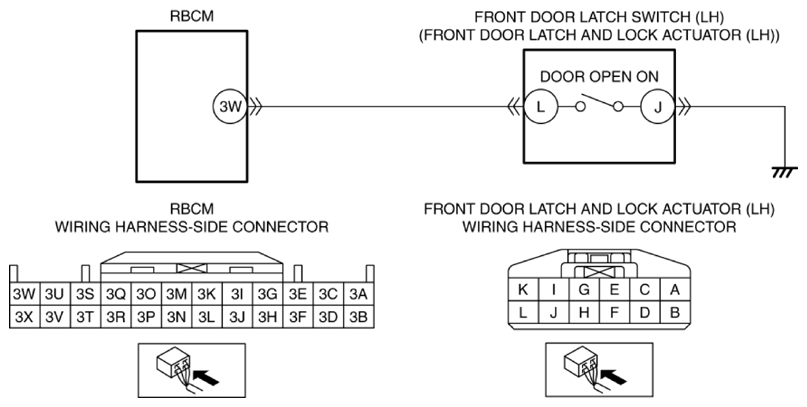

- Short to ground in wiring harness between rear body control module (RBCM) terminal 3W and front door latch and lock actuator (LH) terminal L
- Rear body control module (RBCM) malfunction
|
|
|
