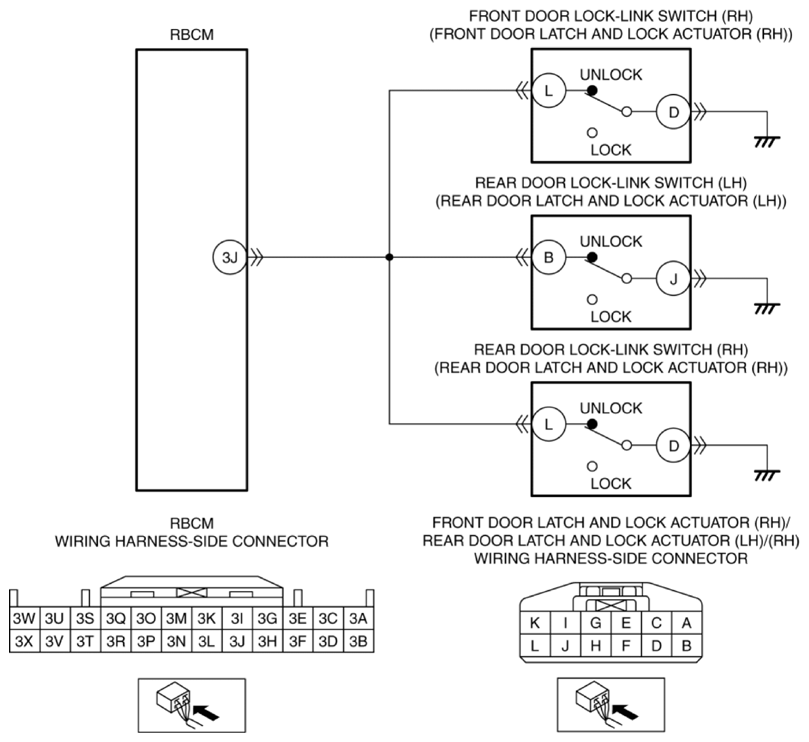

| System malfunction location |
Front door lock-link switch (RH)/rear door lock-link switch (LH)/(RH) unlock circuit malfunction |
| Detection condition |
- With the front door lock-link switch (RH)/rear door lock-link switch (LH)/(RH) unlocked, the rear body control module (RBCM) detects an open circuit in the door lock-link switch unlock circuit.
|
| Fail-safe |
- |
| Possible cause |
- Front door latch and lock actuator (RH) connector or terminal malfunction
- Open circuit in wiring harness between front door latch and lock actuator (RH) terminal D and body ground
- Front door lock-link switch (RH) malfunction
- Rear door latch and lock actuator (LH) connector or terminal malfunction
- Open circuit in wiring harness between rear door latch and lock actuator (LH) terminal J and body ground
- Rear door lock-link switch (LH) malfunction
- Rear door latch and lock actuator (RH) connector or terminal malfunction
- Open circuit in wiring harness between rear door latch and lock actuator (RH) terminal D and body ground
- Rear door lock-link switch (RH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction
- Open circuit in wiring harness between rear body control module (RBCM) terminal 3J and front door latch and lock actuator (RH) terminal L/rear door latch and lock actuator (RH) terminal B/rear door latch and lock actuator (LH) terminal L
- Rear body control module (RBCM) malfunction
|
|
|
