Vehicles Without Theft-Deterrent System
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Front door lock-link switch (RH) unlock circuit malfunction |
| Detection condition |
- With the front door lock-link switch (RH) locked, the rear body control module (RBCM) detects a short to ground in the door lock-link switch unlock circuit.
|
| Fail-safe |
- |
| Possible cause |
- Front door latch and lock actuator (RH) connector or terminal malfunction
- Front door lock-link switch (RH) malfunction
- Rear body control module (RBCM) connector or terminal malfunction

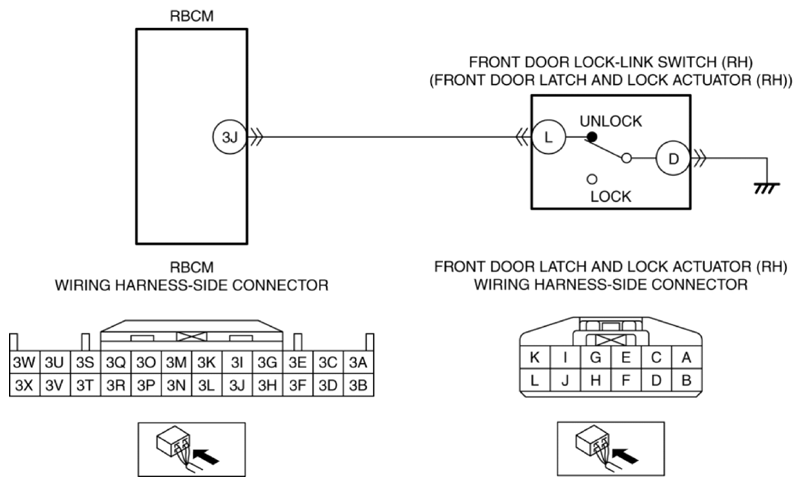

- Short to ground in wiring harness between rear body control module (RBCM) terminal 3J and front door latch and lock actuator (RH) terminal L
- Rear body control module (RBCM) malfunction
|
|
|
