DTC B113E-11: Liftgate Opener Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Liftgate opener switch circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects short to ground in liftgate opener switch circuit
|
| Fail-safe |
- |
| Possible cause |
- Liftgate opener switch connector or terminal malfunction
- Liftgate opener switch malfunction
- Rear body control module (RBCM) connector or terminal malfunction

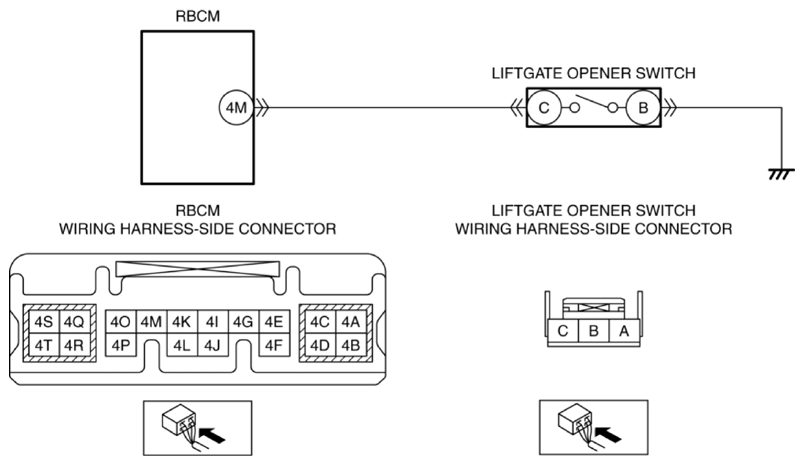

- Short to ground in wiring harness between rear body control module (RBCM) terminal 4M and liftgate opener switch terminal C
- Rear body control module (RBCM) malfunction
|
|
|
