DTC B1079-13: Hood Latch Switch Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

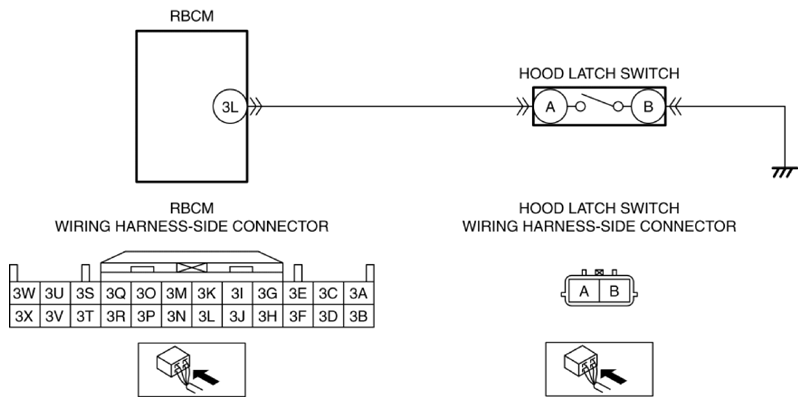

| System malfunction location |
Hood latch switch circuit malfunction |
| Detection condition |
- Rear body control module (RBCM) detects open circuit in hood latch switch circuit.
|
| Fail-safe |
- |
| Possible cause |
- Hood latch switch connector or terminal malfunction
- Open circuit in wiring harness between hood latch switch terminal B and body ground
- Hood latch switch malfunction
- Rear body control module (RBCM) connector or terminal malfunction
- Open circuit in wiring harness between rear body control module (RBCM) terminal 3L and hood latch switch terminal A
- Rear body control module (RBCM) malfunction
|
|
|
