Exhaust system insulator removal/installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION .)
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

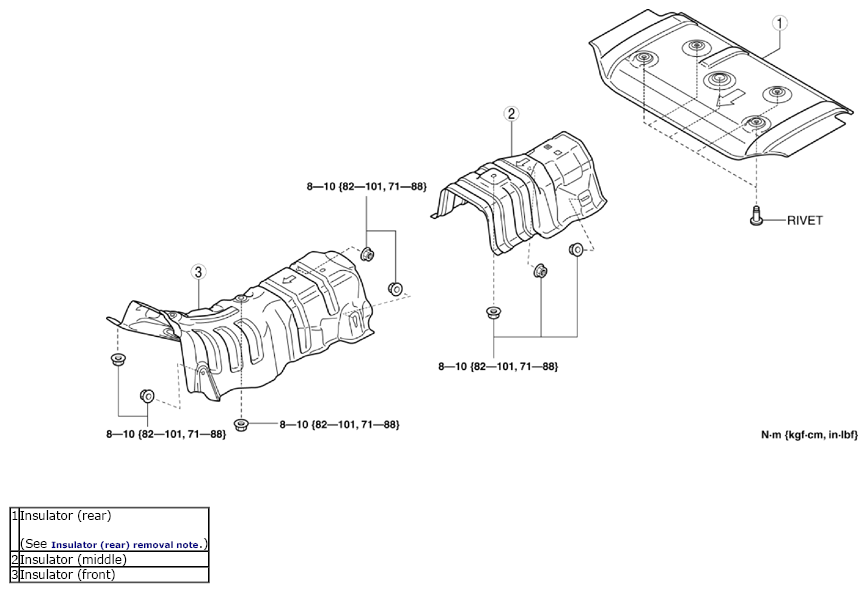

Fig 1: Identifying Exhaust System Insulator, Nuts And Bolts With Torque Specification
G10916397Courtesy of MAZDA MOTORS CORP.
