Exhaust manifold insulator removal note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the insulator as shown in the figure.

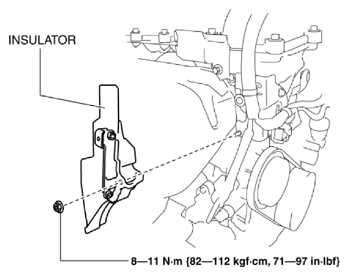

    Fig 1: Identifying Exhaust Manifold Insulator And Nut With Torque Specification
    G10916400Courtesy of MAZDA MOTORS CORP.
  2. Remove the exhaust manifold insulator.
