Exhaust system insulator removal/installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exhaust system insulator in the order shown in the figure.
Install in the reverse order of removal.

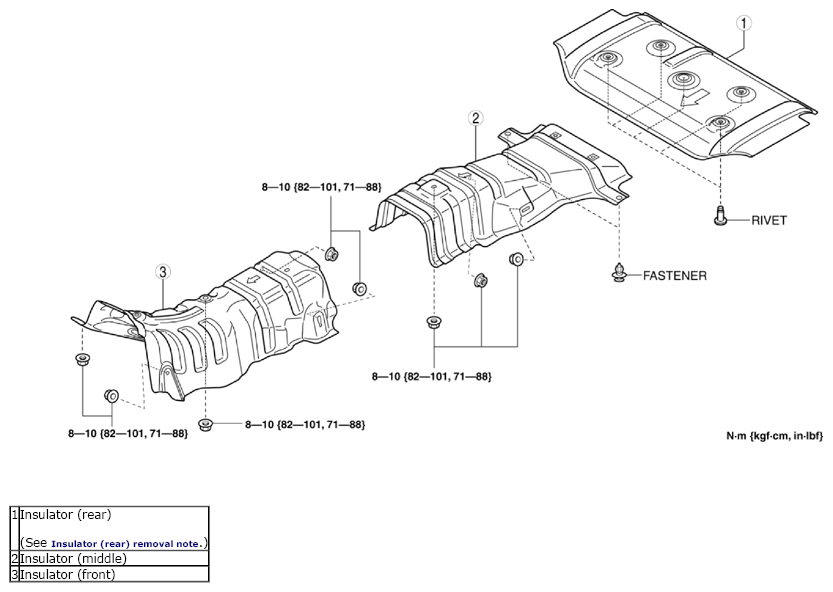

Fig 1: Identifying Exhaust System Insulator, Nuts And Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
