Exhaust manifold insulator installation note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Temporarily tighten the exhaust manifold insulator.

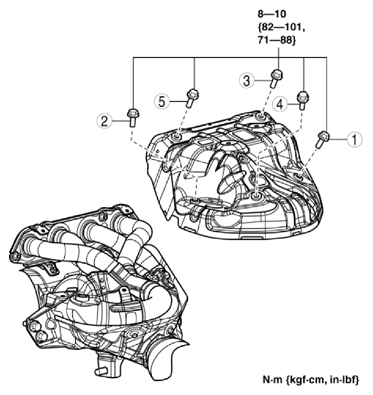

- Tighten the exhaust manifold insulator in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Exhaust manifold insulator (upper) tightening torque
- 8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
