Exhaust manifold installation note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily tighten the exhaust manifold installation nuts (1) and (2) shown in the figure by hand.

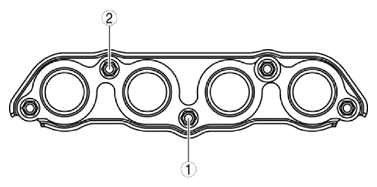

Fig 1: Identifying Exhaust Manifold Installation Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure to 33-53 N.m {3.4-5.4 kgf.m, 25-39 ft.lbf}.
Temporarily tighten the exhaust manifold installation nuts (3) to (5) shown in the figure by hand.

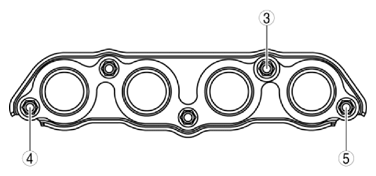

Fig 2: Identifying Exhaust Manifold Installation Nuts
Courtesy of MAZDA MOTORS CORP.
Tighten the exhaust manifold installation nuts (3) to (5) shown in the figure.
Exhaust manifold installation nut tightening torque
- 43-64 N.m {4.4-6.5 kgf.m, 32-47 ft.lbf}
Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.
Exhaust manifold installation nut tightening torque
- 43-64 N.m {4.4-6.5 kgf.m, 32-47 ft.lbf}
Temporarily tighten the bolts (6) and (7) shown in the figure.

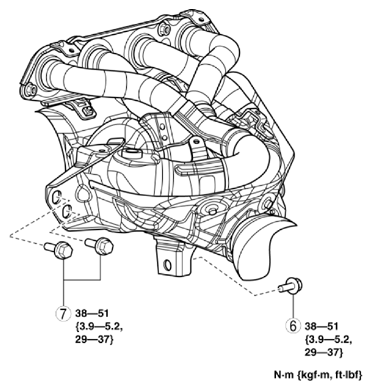

Fig 3: Identifying Exhaust Manifold Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Tighten the bolt (6) shown in the figure.
Exhaust manifold installation bolt tightening torque
- 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
Tighten the bolt (7) shown in the figure.
Exhaust manifold installation bolt tightening torque
- 38-51 N.m {3.9-5.2 kgf.m, 29-37 ft.lbf}
