Magnetic switch

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

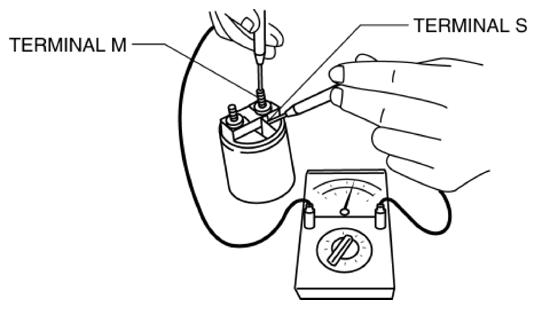

Inspect for continuity between terminals S and M using a tester.

Fig 1: Inspecting For Continuity Between Terminals S And M Using Tester
Courtesy of MAZDA MOTORS CORP.
- If there is no continuity, replace the magnetic switch.

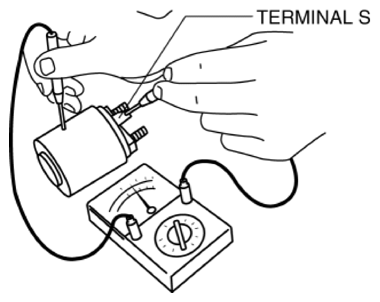

Inspect for continuity between terminal S and the body using a tester.

Fig 2: Inspecting For Continuity Between Terminal S And Body Using Tester
Courtesy of MAZDA MOTORS CORP.
- If there is no continuity, replace the magnetic switch.

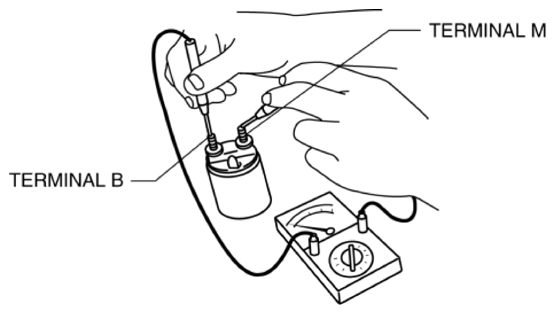

Verify that there is no continuity between terminals M and B using a tester.

Fig 3: Checking Continuity Between Terminals M And B Using Tester
Courtesy of MAZDA MOTORS CORP.
- If there is continuity, replace the magnetic switch.
