Pinion Gap Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Pull out the drive pinion with the battery positive voltage connected to terminal S and the starter body grounded.

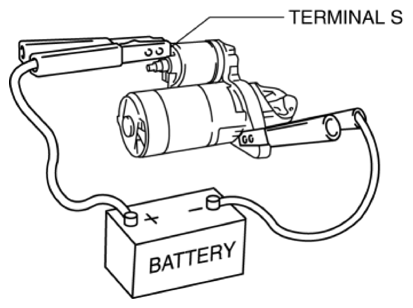

Fig 1: Connecting Battery Positive Voltage Terminal S And Starter Body Grounded
Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Applying power for more than 10 s can damage the starter. Do not apply power for more than 10 s.
Measure the pinion gap while the drive pinion is extended.

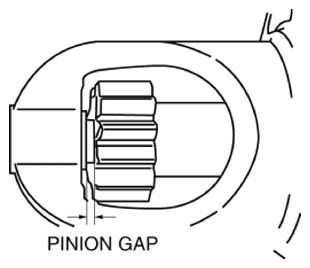

Fig 2: Measuring Pinion Gap
Courtesy of MAZDA MOTORS CORP.
- If not as specified, adjust with an adjustment washer (between drive housing front cover and magnetic switch).
Starter pinion gap
- 0.5-2.0 mm {0.02-0.07 in}
