Pull-out test
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Depending on the battery charge condition, the starter motor pinion may rotate while in an extended state. This is due to current flowing to the starter motor through the pull-in coil to turn the starter motor, and does not indicate an abnormality.

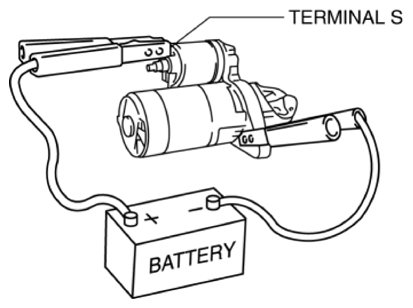

- Verify that the starter motor pinion is extended while battery positive voltage is connected to terminal S and the starter body is grounded.
- If the starter motor pinion is not extended, repair or replace the starter.
