Security Indicator Light: 11, DTC: B10D9-87: P1260-00: Coil Antenna (Built Into Push Button Start) Error: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
Coil antenna (built into push button start) error |
| Detection condition |
- The starter stop unit detected a malfunction in the coil antenna, and remote transmitter communication is not possible.
|
| Fail-safe |
- |
| Possible cause |
- Push button start connector or terminal malfunction
- Start stop unit connector or terminal malfunction

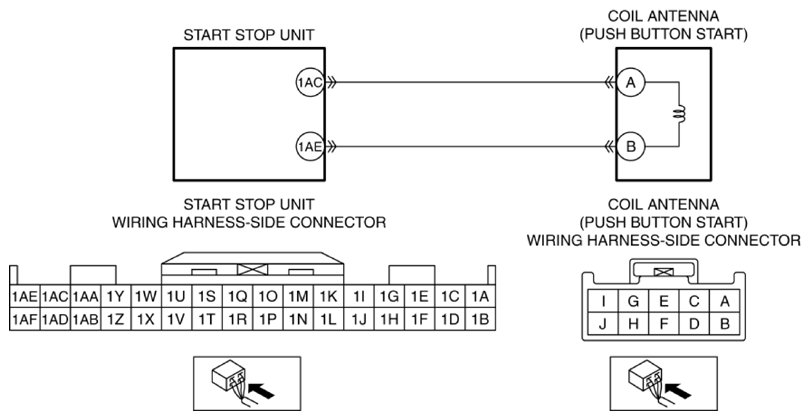

- Short to ground in wiring harness between the following terminals:
- Start stop unit terminal 1AC and push button start terminal A
- Start stop unit terminal 1AE and push button start terminal B
- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 1AC and push button start terminal A
- Start stop unit terminal 1AE and push button start terminal B
- Coil antenna malfunction
- Start stop unit malfunction
|
|
|
