Verifying DTCs using security indicator light
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- If multiple DTCs are detected, only those having the lowest numbers of those detected will be indicated by the security light.
- A DTC is displayed ten times by switching the ignition ON (engine off or on) once.
- Switch the ignition ON (engine off or on).
- Wait for approx. 1 min
until the security indicator light displays a DTC.NOTE:
- If the following DTCs are detected when the ignition is switched ON (engine off or on), the DTC is displayed after the security indicator light is flashed or illuminated for approx. 1 min.
- If DTCs in the nines and tens are detected, the security indicator light flashes for approx. 1 min.
- If a DTC 22 or 23 is detected, the security indicator light illuminates for approx. 1 min.
- DTC 21 is displayed when the ignition is switched ON (engine off or on) and the security indicator light illumination turns off after approx. 1 min.
- If the following DTCs are detected when the ignition is switched ON (engine off or on), the DTC is displayed after the security indicator light is flashed or illuminated for approx. 1 min.

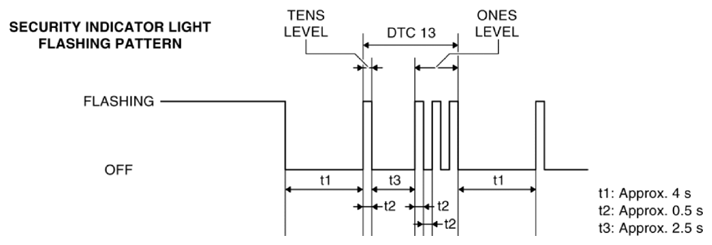

- Read DTCs by the number of times the security indicator light flashes as shown in the figure.
- Repair the malfunctioning part according to the applicable DTC troubleshooting based on the DTC which was verified by the number of times the security indicator light flashed. (See DTC TABLE [IMMOBILIZER SYSTEM] .)
