Section 7 (On-Board Diagnostics - A/T)
>>
On-Board Diagnostic System Foreword [FW6A-El, FW6AX-El]
>>
Troubleshooting Procedure
Troubleshooting Procedure
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

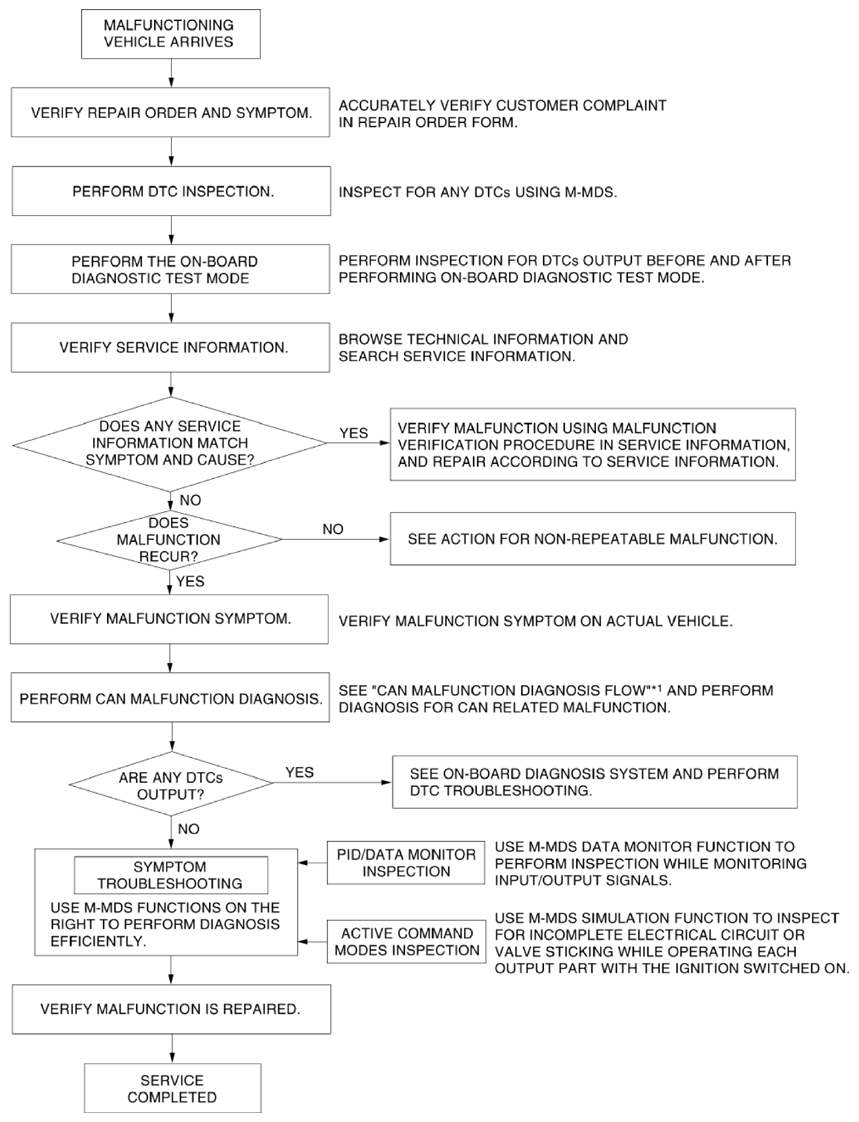

Fig 1: On-Board Diagnostic System Foreword Troubleshooting Procedure Flowchart
Courtesy of MAZDA MOTORS CORP.
