System Wiring Diagram [Entertainment System [With Center Display]]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

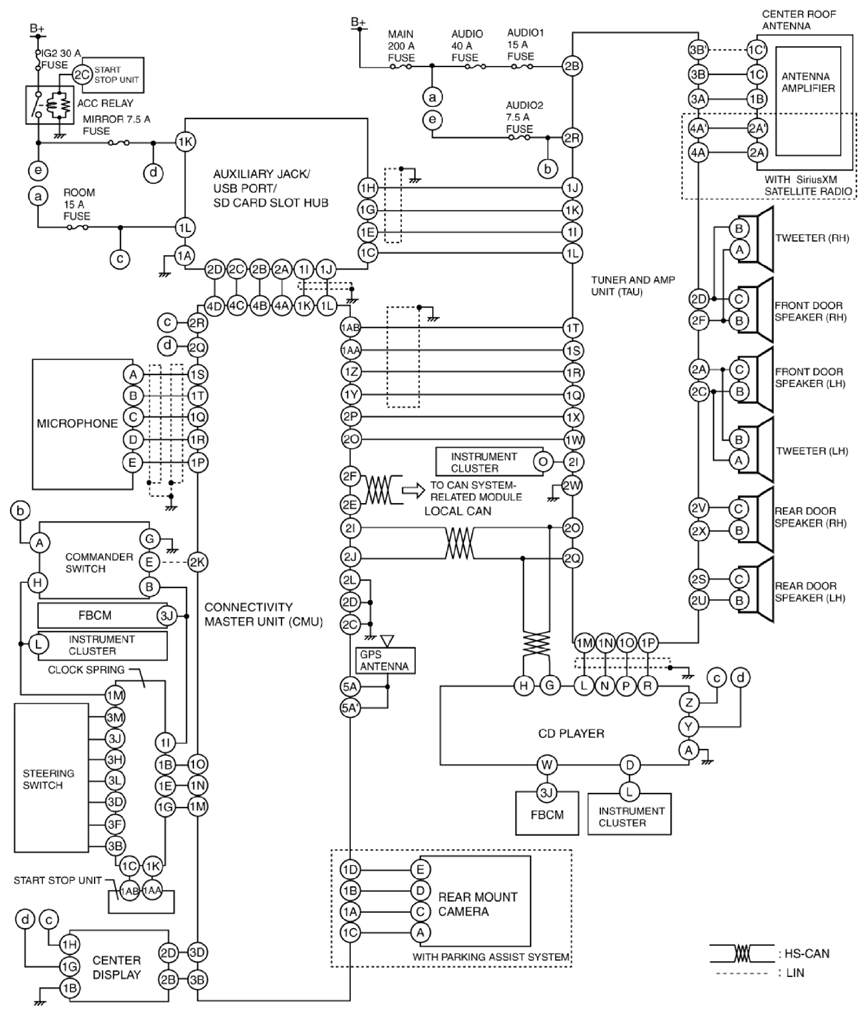

Fig 1: Entertainment System Wiring Diagram - WITH CENTER DISPLAY (Without Bose®)

Courtesy of MAZDA MOTORS CORP.

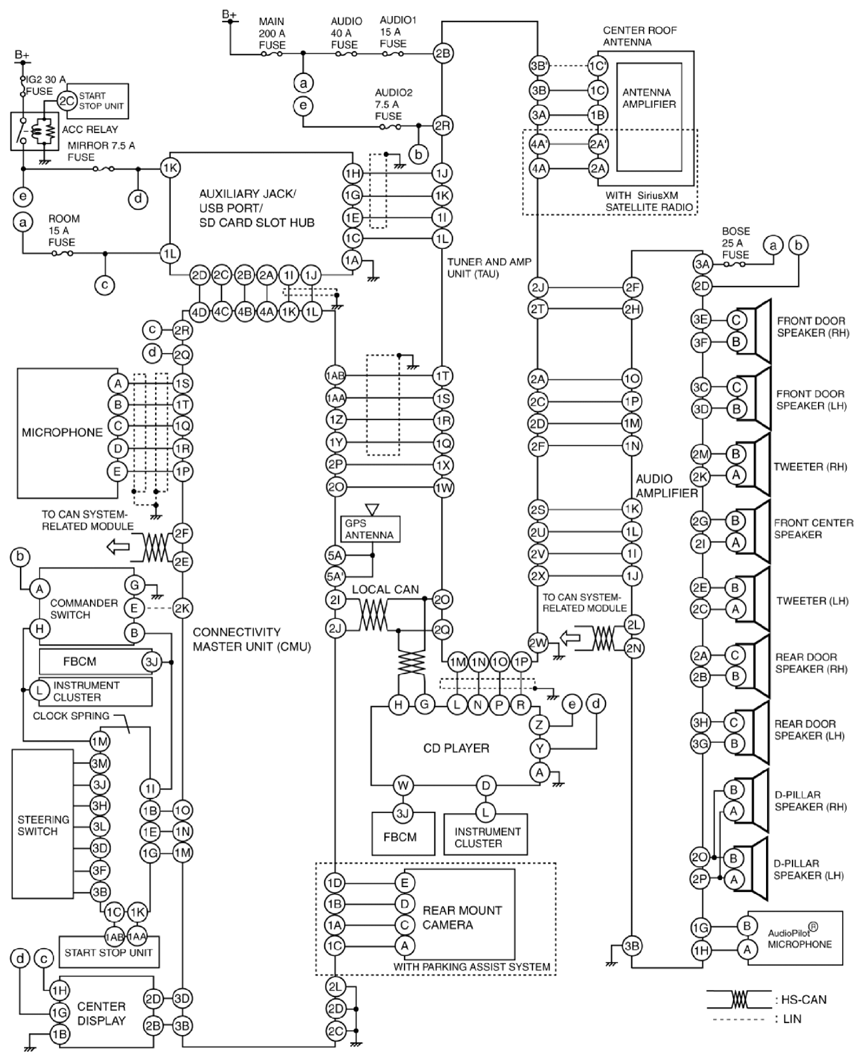

Fig 2: Entertainment System Wiring Diagram - WITH CENTER DISPLAY (With Bose®)

Courtesy of MAZDA MOTORS CORP.
