Rear Mount Camera Image Not Output [Entertainment System [With Center Display]]: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
REAR MOUNT CAMERA IMAGE NOT OUTPUT |
| Navigation image is output, however, rear mount camera image is not output |
| Possible Causes |
- Connector poor contact or terminal damage
- Rear mount camera malfunction
- Open circuit in wiring harness between the following terminals:
- CMU terminal 1B and rear mount camera terminal D
- CMU terminal 1C and rear mount camera terminal F
- CMU terminal 1D and rear mount camera terminal C
- Short to power supply in wiring harness between the following terminals:
- CMU terminal 1B and rear mount camera terminal D
- CMU terminal 1C and rear mount camera terminal F
- CMU terminal 1D and rear mount camera terminal C
- CMU malfunction
|

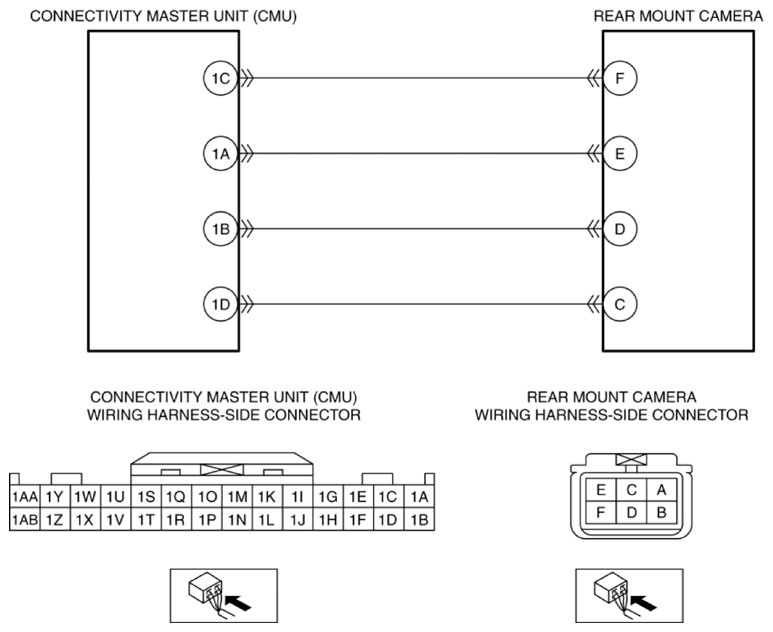

| System Wiring Diagram |
|
