Real Time Traffic Function Information Not Displayed [Entertainment System [With Center Display]]: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
REAL TIME TRAFFIC FUNCTION INFORMATION NOT DISPLAYED |
| |
Information such as gas prices, weather, and nearest restaurant is not output in navigation mode |
| Possible Causes |
- SD card malfunction
- Malfunction due to effects of surrounding environment
- Mobile device such as Smartphone is placed where radio waves cannot be received
- Mobile device such as customer's Smartphone malfunction
- Wi-Fi™ connection setting is off
- Mobile device internal malfunction such as Smartphone
- Connector poor contact or terminal damage
- Auxiliary jack/USB port/SD card slot hub malfunction
- Open circuit in wiring harness between the following terminals:
- CMU terminal 4A and auxiliary jack/USB port/SD card slot hub terminal 2A
- Short to ground in wiring harness between the following terminals:
- CMU terminal 4A and auxiliary jack/USB port/SD card slot hub terminal 2A
- CMU terminal 4B and auxiliary jack/USB port/SD card slot hub terminal 2B
- CMU terminal 4D and auxiliary jack/USB port/SD card slot hub terminal 2D
- Short to power supply in wiring harness between the following terminals:
- CMU terminal 4A and auxiliary jack/USB port/SD card slot hub terminal 2A
- CMU terminal 4B and auxiliary jack/USB port/SD card slot hub terminal 2B
- CMU terminal 4D and auxiliary jack/USB port/SD card slot hub terminal 2D
- Auxiliary jack/USB port/SD card slot hub malfunction
- Connectivity master unit (CMU) malfunction
|

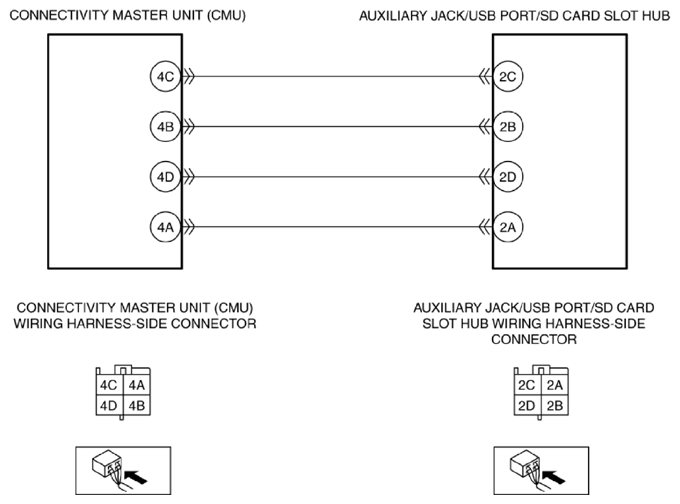

| System Wiring Diagram |
|
