Image Not Output In All Modes [Entertainment System [With Center Display]]: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Description	IMAGE NOT OUTPUT IN ALL MODES
Description	Image is not output in center display even if any mode is selected
Possible Causes	Connector poor contact or terminal damage Open circuit in wiring harness between center display terminal 1B and body ground Center display malfunction Connectivity master unit (CMU) malfunction

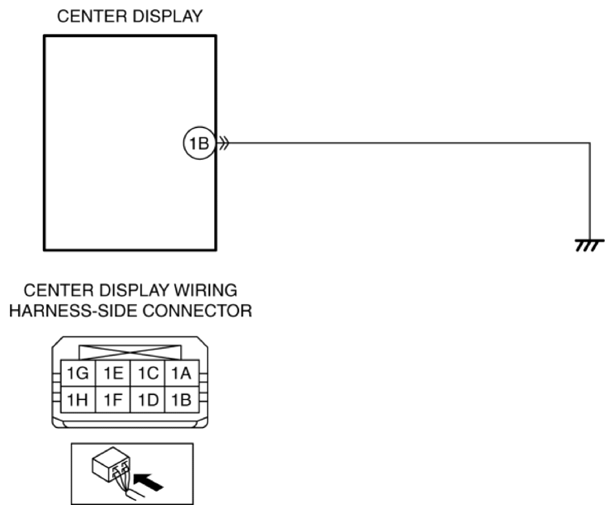

System Wiring Diagram
