On-Board Diagnostic Wiring Diagram [Connectivity Master Unit]

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

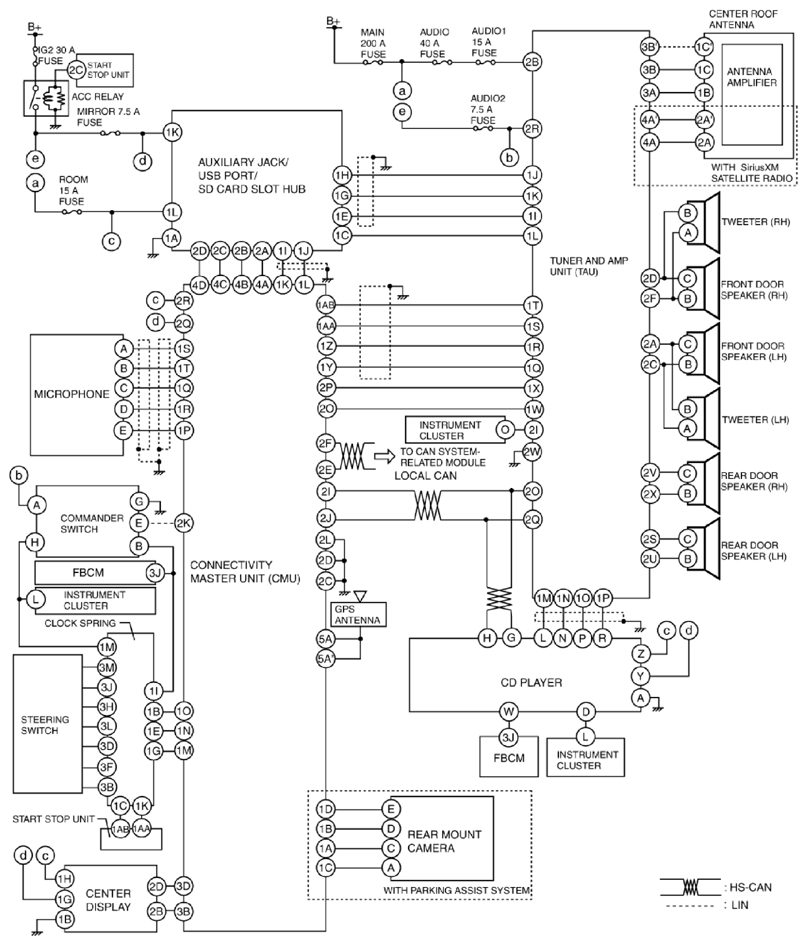

Fig 1: Connectivity Master Unit Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

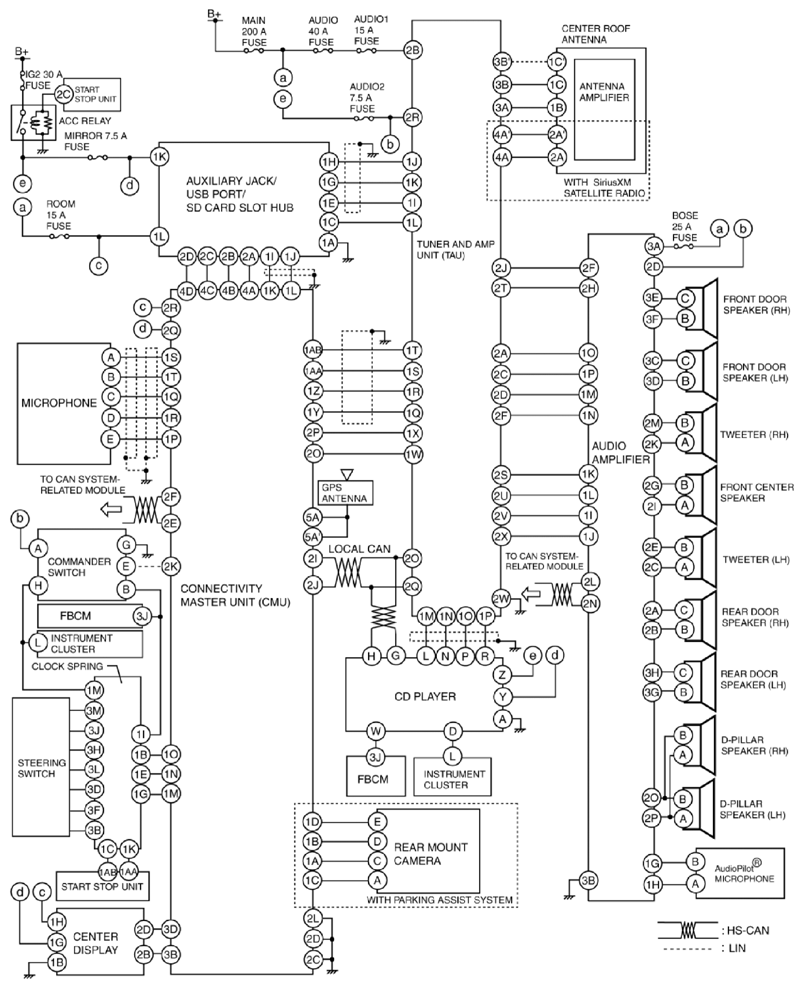

Fig 2: Connectivity Master Unit Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
