Troubleshooting Procedure

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

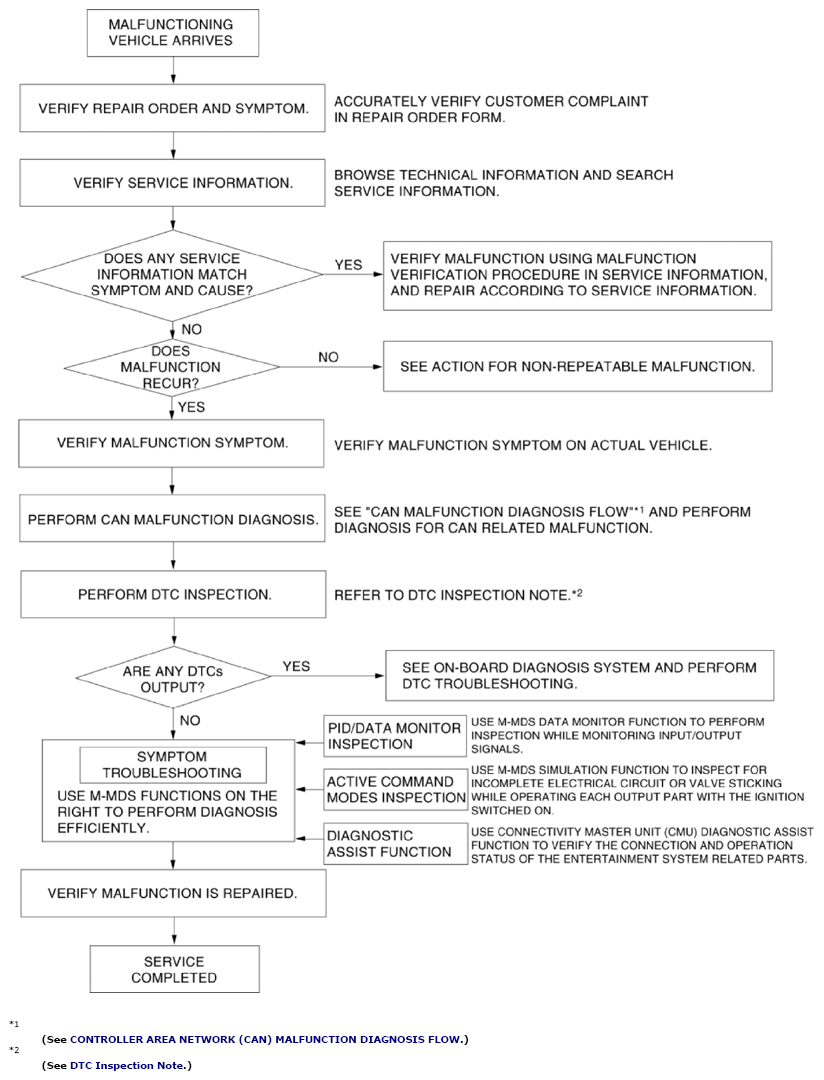

Fig 1: Connectivity Master Unit Troubleshooting Chart
G10938088Courtesy of MAZDA MOTORS CORP.
