Using commander switch

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to ACC or ON (engine off or on).
  2. Press the following buttons simultaneously for 2 s or more  .
    • Volume dial
    • AUDIO button
    • FAVORITE button

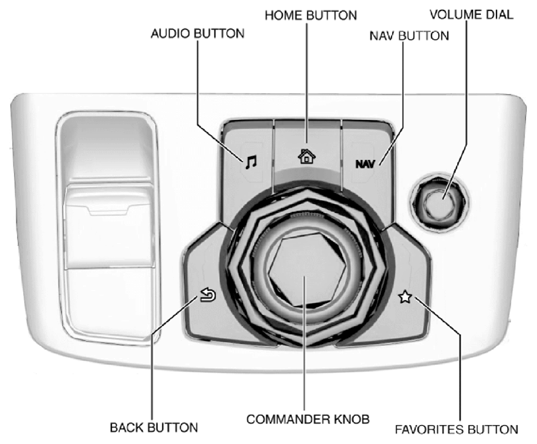

    Fig 1: Identifying Home Button, Navigation Button, Volume Dial, Back Button, Commander Knob, Audio Button And Favorite Button
    G10938116Courtesy of MAZDA MOTORS CORP.
