Using center display

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Switch the ignition to ACC or ON (engine off or on).
  2. Display the display setting screen in the center display.
    • Select [Settings] on the center display.
    • Select [Screen] on the center display.
  3. Operate the center display in the following order.
    • Touch the right upper area of the screen (area A in figure) for 5 s or more  .
    • Touch the left upper area of the screen (area B in figure) for 5 s or more  .

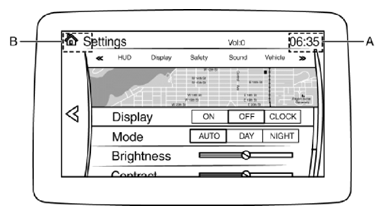

    Fig 1: Screen Display - Diagnostic Assist Function
    G10938117Courtesy of MAZDA MOTORS CORP.
