DTC B1238-87: RDS Traffic Information Transfer Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
RDS traffic information transfer circuit malfunction |
| Detection condition |
- The connectivity master unit (CMU) detects a communication error in the RDS traffic information transfer circuit for 20 times
with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Tuner and amp unit (TAU) connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

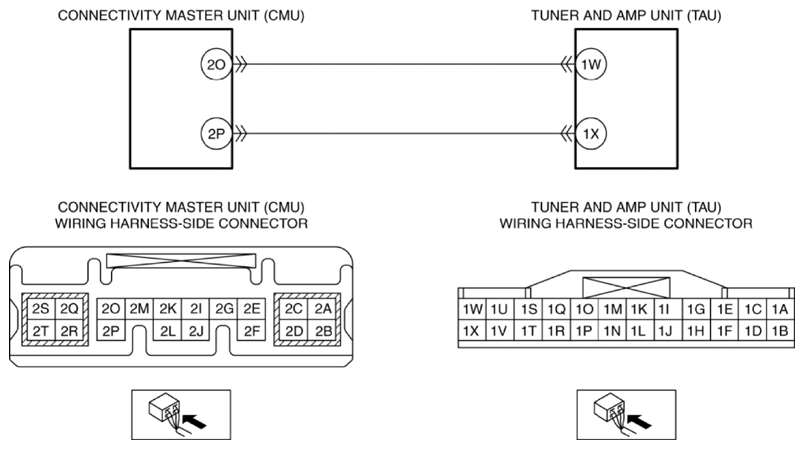

- Short to ground in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 2O and tuner and amp unit (TAU) terminal 1W
- Connectivity master unit (CMU) terminal 2P and tuner and amp unit (TAU) terminal 1X
- Short to power supply in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 2O and tuner and amp unit (TAU) terminal 1W
- Connectivity master unit (CMU) terminal 2P and tuner and amp unit (TAU) terminal 1X
- Open circuit in wiring harness between the following terminals:
- Connectivity master unit (CMU) terminal 2O and tuner and amp unit (TAU) terminal 1W
- Connectivity master unit (CMU) terminal 2P and tuner and amp unit (TAU) terminal 1X
- Tuner and amp unit (TAU) malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
