DTC B119F-11: GPS Antenna Circuit Malfunction: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| Description |
GPS antenna circuit malfunction |
| Detection condition |
- Connectivity master unit (CMU) detects GPS antenna circuit voltage of 4.45 V or less
with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- GPS antenna connector or terminal malfunction
- Connectivity master unit (CMU) connector or terminal malfunction

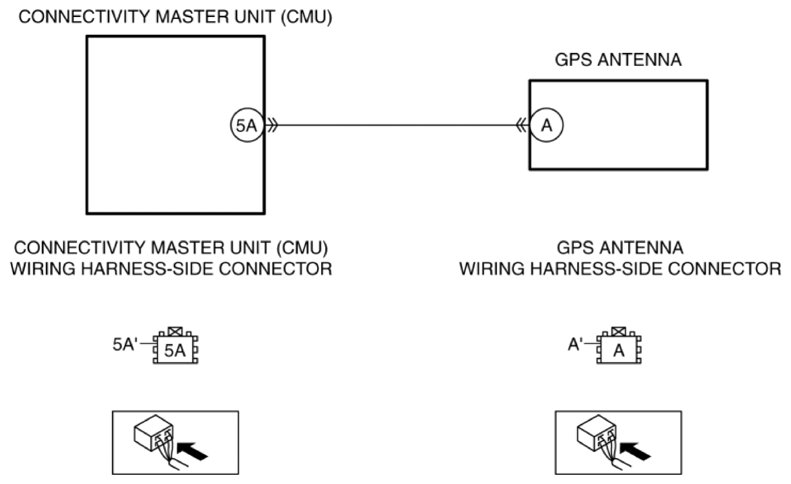

- Short to ground in wiring harness between connectivity master unit (CMU) terminal 5A and GPS antenna terminal A
- GPS antenna malfunction
- Connectivity master unit (CMU) malfunction
|
|
|
