Section 64 (On-Board Diagnostic - Radar Unit)
>>
On-Board Diagnostic Wiring Diagram [Radar Unit]
On-Board Diagnostic Wiring Diagram [Radar Unit]
WARNING:
This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

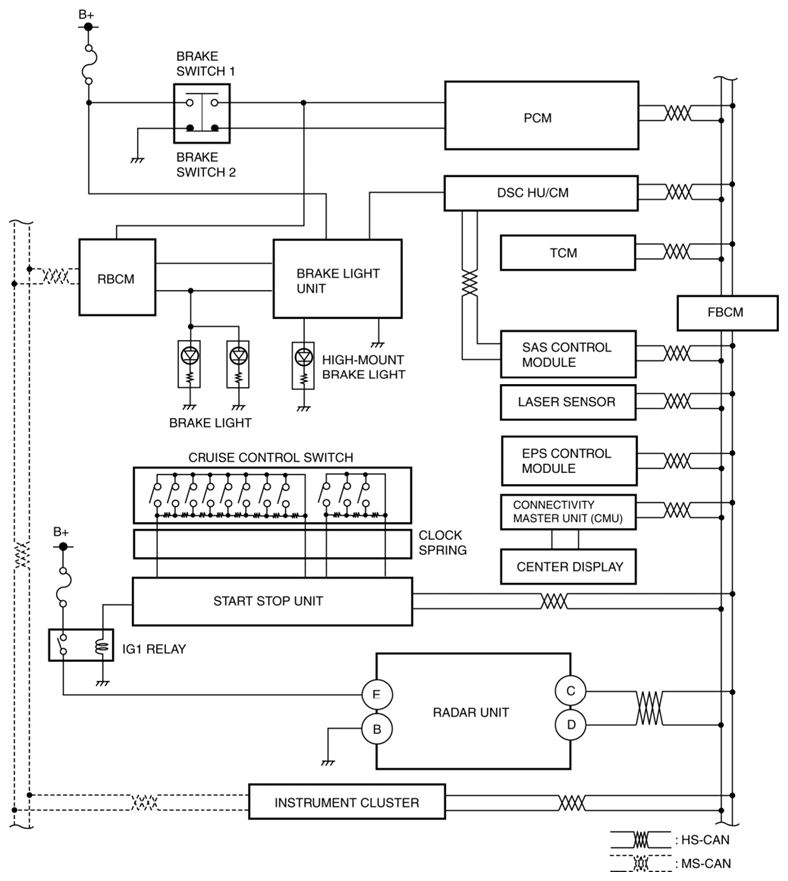

Fig 1: On-Board Diagnostic Wiring Diagram - Radar Unit
Courtesy of MAZDA MOTORS CORP.
