DTC B1B71-11: B1B71-13: Evaporator Temperature Sensor Circuit: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
| System malfunction location |
- B1B71:11: Evaporator temperature sensor circuit short to ground
- B1B71:13: Evaporator temperature sensor circuit open
|
| Detection condition |

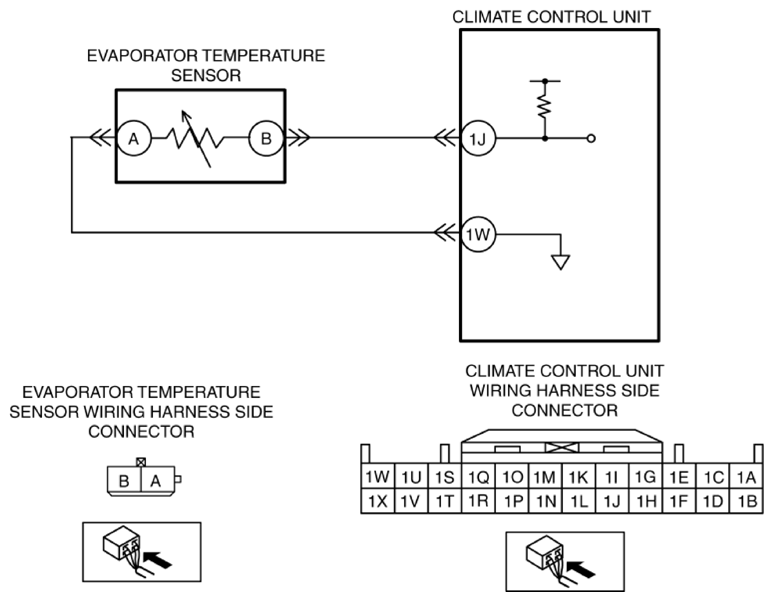

- Malfunction in wiring harness between evaporator temperature sensor and climate control unit
|
| Fail-safe |
- A/C output OFF is controlled when the evaporator temperature sensor input value is at 0 °C {32 °F}.
|
| Possible cause |
- Connector or terminal malfunction
- Evaporator temperature sensor malfunction
- Open circuit in wiring harness between climate control unit and evaporator temperature sensor
- Short to ground in wiring harness between climate control unit and evaporator temperature sensor
- Climate control unit malfunction
|
|
|
