DTC B1A61-11: B1A61-13: Passenger Compartment Temperature Sensor Circuit: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

System malfunction location	B1A61:11: Passenger compartment temperature sensor circuit short to ground B1A61:13: Passenger compartment temperature sensor circuit open

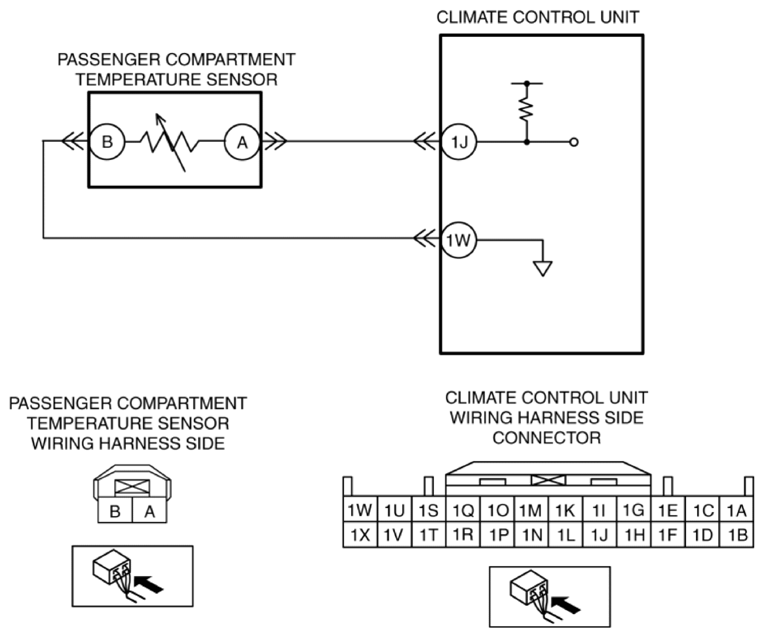

Detection condition	Malfunction in wiring harness between passenger compartment temperature sensor and climate control unit
Fail-safe	Malfunction determined when IG SW at ON Passenger compartment temperature sensor input value is fixed at the value right before the malfunction. Malfunction already exists when IG SW turned to ON Passenger compartment temperature sensor input value is fixed at 25 °C {77 °F}.
Possible cause	Connector or terminal malfunction Passenger compartment temperature sensor malfunction Open circuit in wiring harness between climate control unit and passenger compartment temperature sensor Short to ground in wiring harness between climate control unit and passenger compartment temperature sensor Climate control unit malfunction
