Differential Oil Temperature Sensor Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Hot differential oil may cause severe burns. Do not perform maintenance while differential oil is hot.
- Disconnect the negative battery cable.
- Disconnect the differential oil temperature sensor connector.

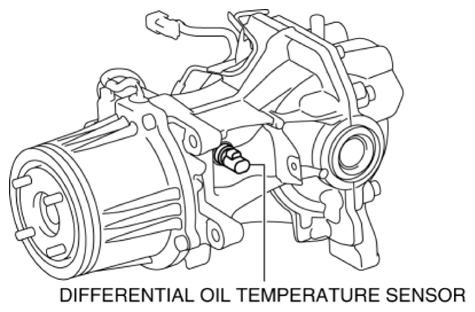

- Remove the differential oil temperature sensor.
- Install the differential oil temperature sensor.
Tightening torque
- 13-17 N.m {133-173 kgf.cm, 116-150 in.lbf}
- Connect the differential oil temperature sensor connector.
- Connect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
