AWD Control Module Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the AWD control module toward the connector, and remove it.

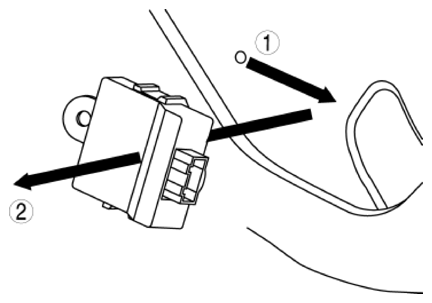

    Fig 1: Removing AWD Control Module
    G10936755Courtesy of MAZDA MOTORS CORP.
