Heater Hose Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the battery. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
Remove the nuts.

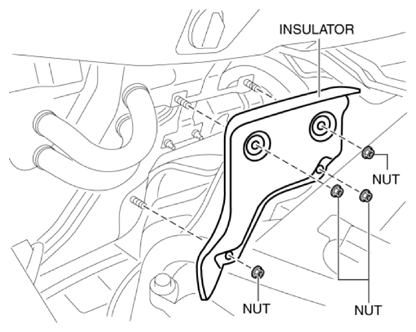

Fig 1: Identifying Insulator And Nuts
Courtesy of MAZDA MOTORS CORP.
Remove the insulator.
Remove the clips and remove the heater hose.

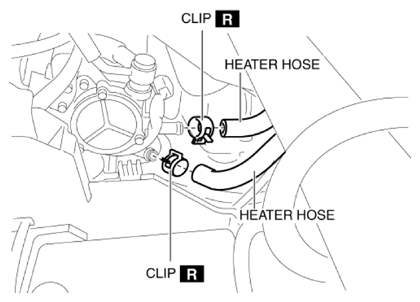

Fig 2: Identifying Heater Hose And Clips
Courtesy of MAZDA MOTORS CORP.

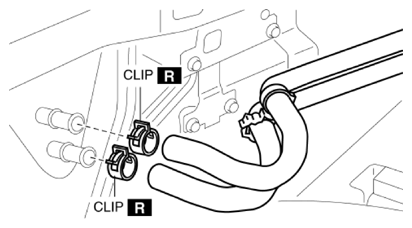

Fig 3: Identifying Heater Hose Clips
Courtesy of MAZDA MOTORS CORP.

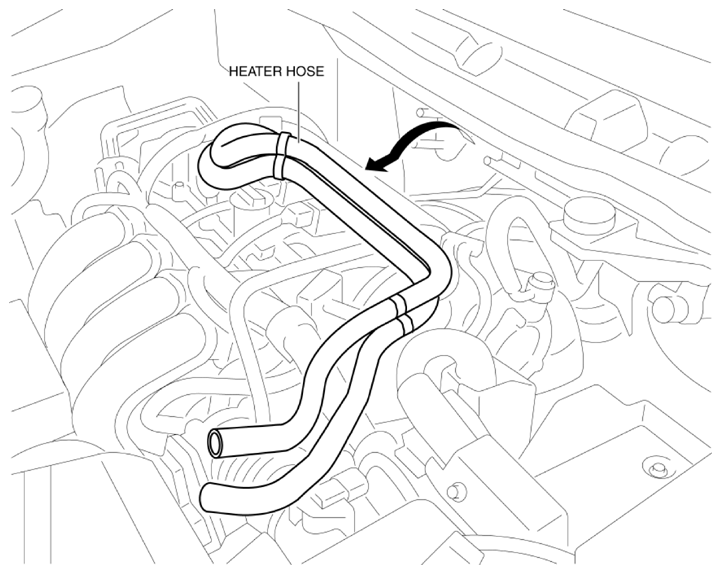

Fig 4: Removing Heater Hose
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of the removal.
Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5] .)
