Sunroof Switch Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the sunroof switch terminals is as indicated in the chart.

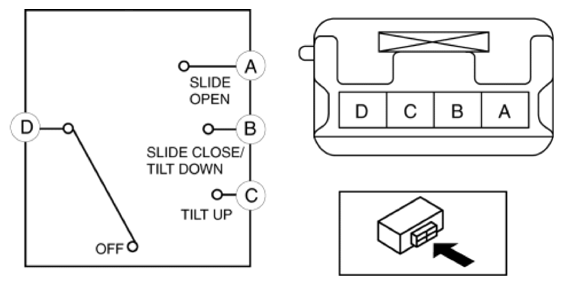

Fig 1: Checking Continuity Between Sunroof Switch Terminals
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the chart, replace the sunroof switch.

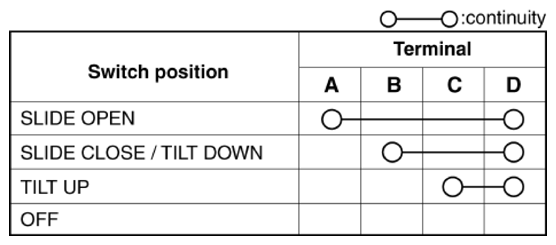

Fig 2: Sunroof Switch Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
