Urethane Attachment

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Attach urethane to the position shown in the figure using the projection as a reference.

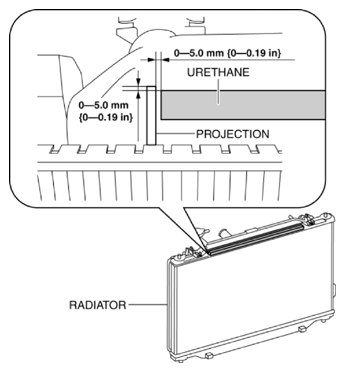

Fig 1: Identifying Urethane Installation Dimension

Courtesy of MAZDA MOTORS CORP.
