Upper Radiator Hose Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bracket shown in the figure from the throttle body and set the upper radiator hose aside.

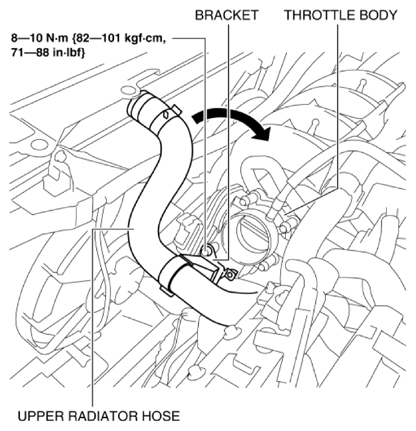

Fig 1: Removing Bracket From Throttle Body

Courtesy of MAZDA MOTORS CORP.
