Part Inspection
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Verify that the battery is fully charged. (See BATTERY INSPECTION .)
- Disconnect the cooling fan motor connector (2 terminals).

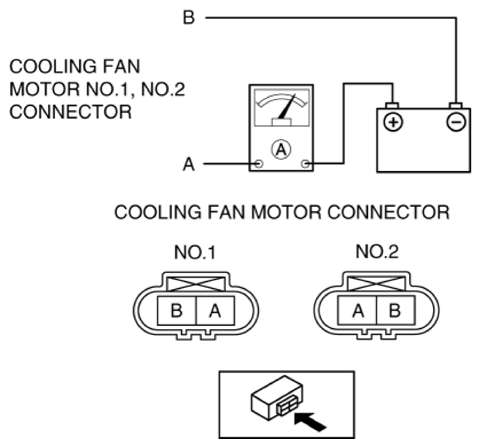

- Install a tester and battery to the cooling fan motor connector (2 terminals) as shown in the figure.
- Verify that each cooling fan motor operates smoothly at the standard current.
- If there is any malfunction, replace the applicable part.
Cooling fan motor No. 1, No. 2 standard current
- 4.5-8.5 A [12 V]
