Coolant Reserve Tank Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the coolant reserve tank from the radiator cowling tabs shown in the figure by lifting them with a flathead screwdriver.

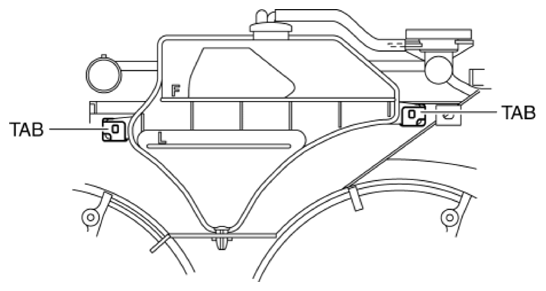

Fig 1: Identifying Radiator Cowling Tabs

Courtesy of MAZDA MOTORS CORP.
