Airflow Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)

Inspect airflow between the ports under the following conditions.

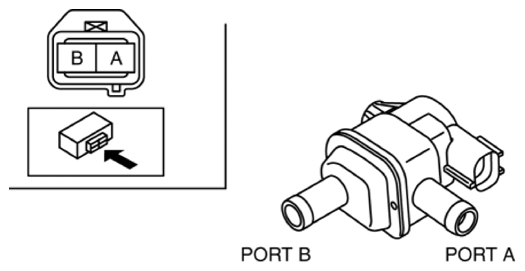

Fig 1: Inspecting Airflow Between Ports

Courtesy of MAZDA MOTORS CORP.

Measured condition	Continuity between ports A-B
When voltage is not applied between terminals A and B	No airflow
When voltage is applied between terminals A and B	Airflow detected

If not as specified, replace the purge solenoid valve. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
