Positive Crankcase Ventilation (PCV) Valve Removal/Installation: Notes
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION )
- Remove the intake manifold. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.

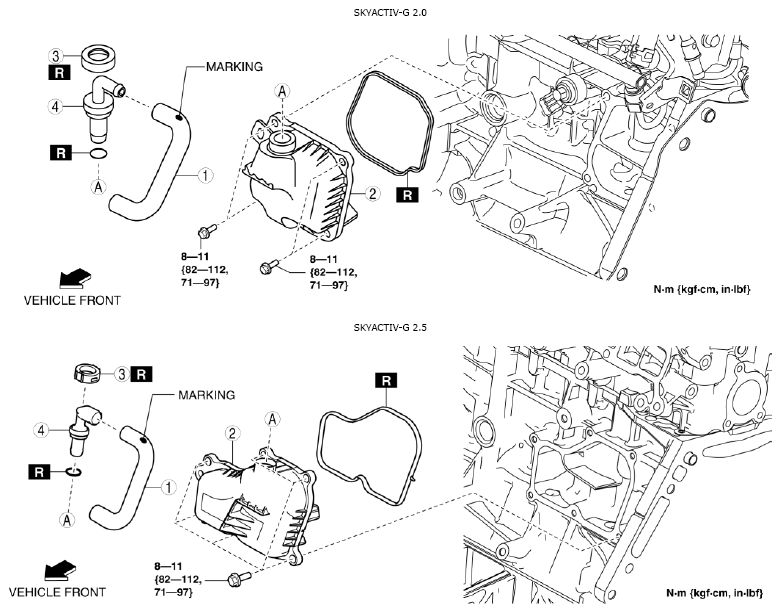

COMPONENT DESCRIPTION
| 1 | PCV hose (See PCV Hose Installation Note .) |
| 2 | Oil separator |
| 3 | Retainer (See Retainer Removal Note .) (See Retainer Installation Note .) |
| 4 | PCV valve |
