Except U.S.A. and CANADA

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

2WD

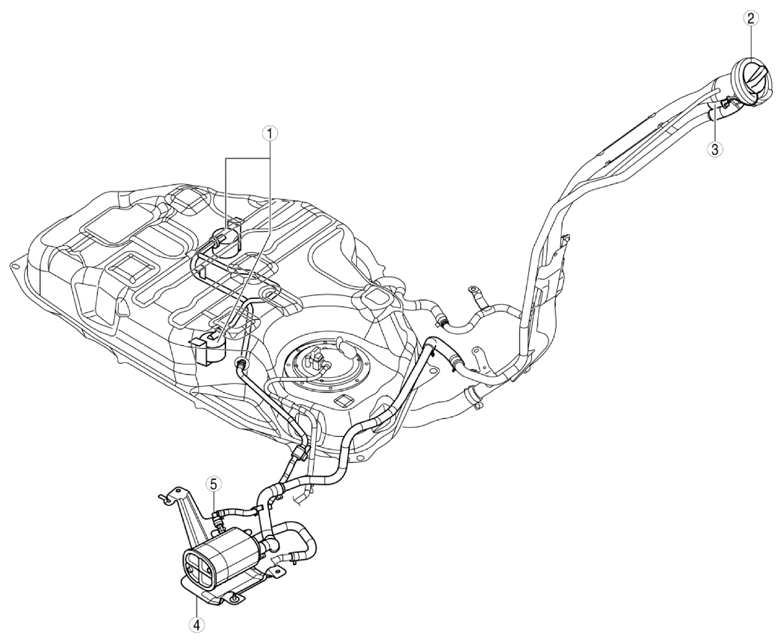

Fig 1: Emission System Related Components - Fuel Tank Side, 2WD (Except U.S.A. And Canada)
G10916410Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION .)
(See ROLLOVER VALVE INSPECTION .)
2 Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION .)
3 Plug
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION .)
4 Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION .)
(See CHARCOAL CANISTER INSPECTION .)
5 Check valve
(See CHECK VALVE REMOVAL/INSTALLATION .)
(See CHECK VALVE INSPECTION .)

AWD

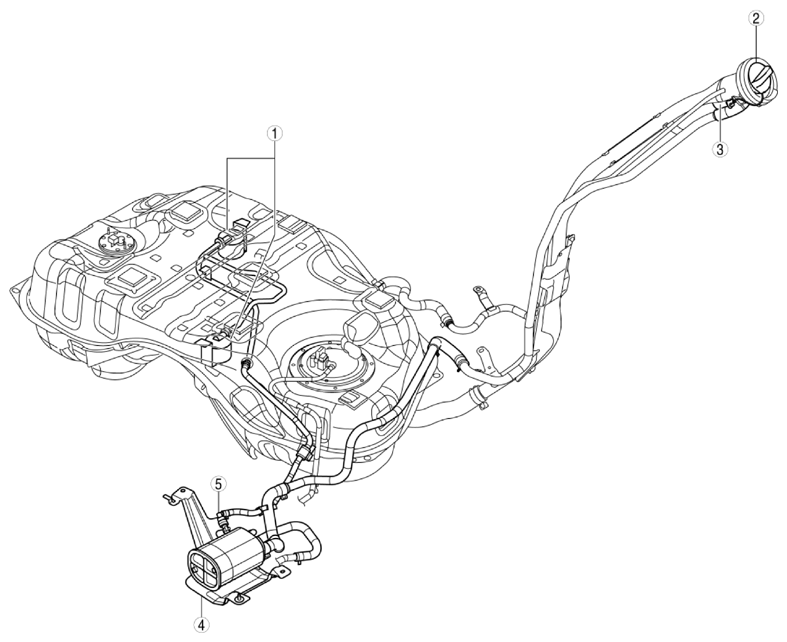

Fig 2: Emission System Related Components - Fuel Tank Side, AWD (Except U.S.A. And Canada)
G10916411Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Rollover valve
(See ROLLOVER VALVE REMOVAL/INSTALLATION .)
(See ROLLOVER VALVE INSPECTION .)
2 Fuel-filler cap
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION .)
3 Plug
(See FUEL-FILLER PIPE REMOVAL/INSTALLATION .)
4 Charcoal canister
(See CHARCOAL CANISTER REMOVAL/INSTALLATION .)
(See CHARCOAL CANISTER INSPECTION .)
5 Check valve
(See CHECK VALVE REMOVAL/INSTALLATION .)
(See CHECK VALVE INSPECTION .)
