Exhaust System Side

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

2WD

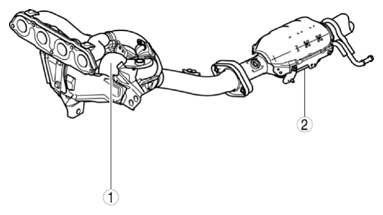

Fig 1: Emission System Related Components - Exhaust System Side (2WD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION .) (See WARM-UP THREE-WAY CATALYTIC CONVERTER (WU-TWC) INSPECTION [SKYACTIV-G 2.0. SKYACTIV-G 2.5] .)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)

AWD

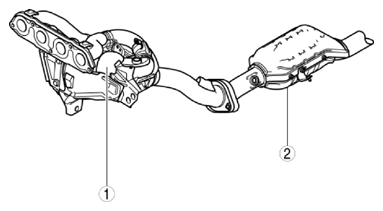

Fig 2: Emission System Related Components - Exhaust System Side (AWD)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	WU-TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION .) (See WARM-UP THREE-WAY CATALYTIC CONVERTER (WU-TWC) INSPECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5) .)
2	TWC (See EXHAUST SYSTEM REMOVAL/INSTALLATION .)
