Catch Tank Inspection

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Remove the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
Plug the purge solenoid valve side into the catch tank.
SKYACTIV-G 2.0

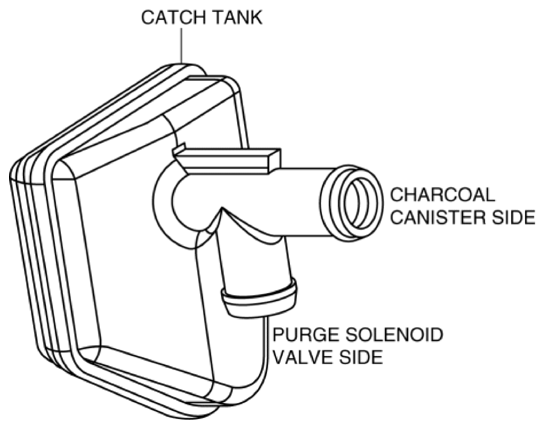

Fig 1: Identifying Purge Solenoid Valve, Charcoal Canister Side And Catch Tank (SKYACTIV-G 2.0)
Courtesy of MAZDA MOTORS CORP.

SKYACTIV-G 2.5

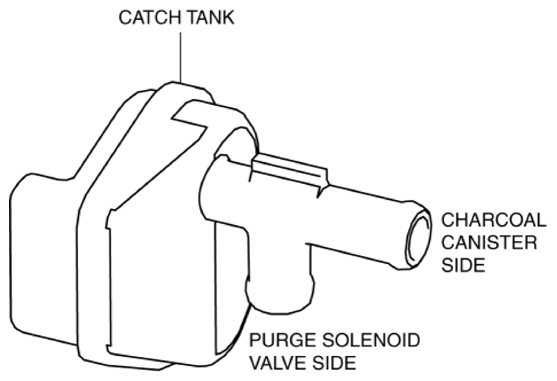

Fig 2: Identifying Purge Solenoid Valve, Charcoal Canister Side And Catch Tank (SKYACTIV-G 2.5)
Courtesy of MAZDA MOTORS CORP.
Inspect for air leakage when blowing air using your mouth into the charcoal canister side.
- If there is air leakage, replace the catch tank. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
