Troubleshooting Procedure

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

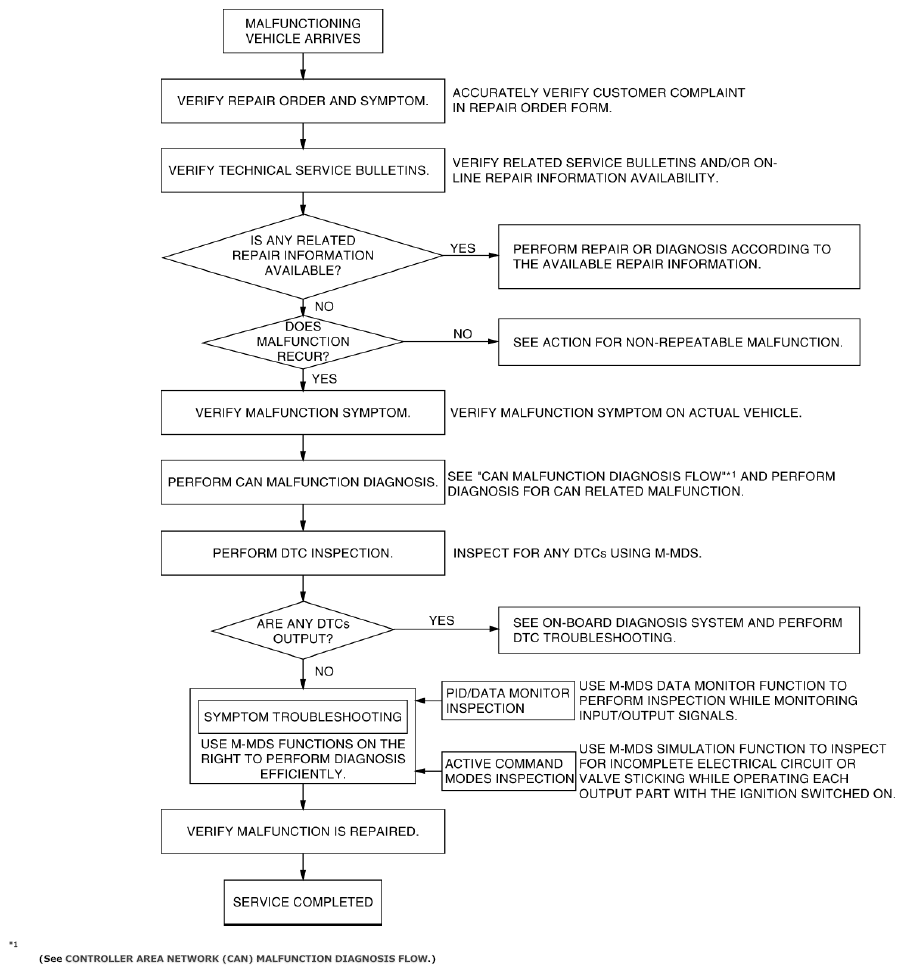

Fig 1: Troubleshooting Procedure Chart

Courtesy of MAZDA MOTORS CORP.

Repair order form

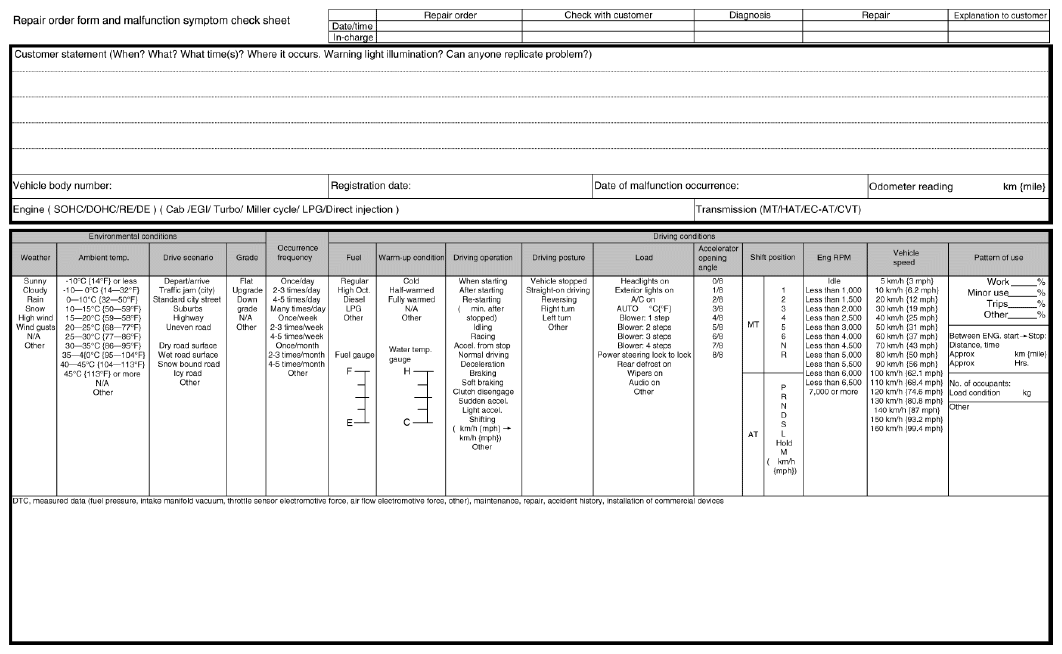

Fig 2: Repair Order Form (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

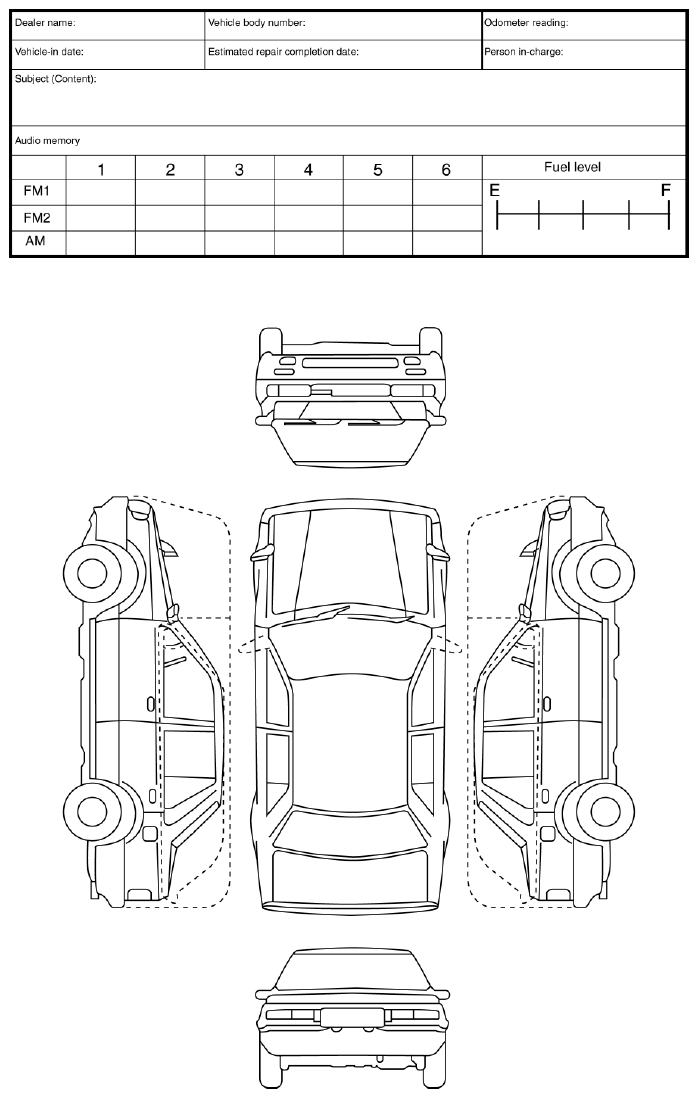

Fig 3: Repair Order Form (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
