Rear Housing Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- After applying silicone sealant, install the rear housing within 10 min. and then tighten all bolts within 5 min.

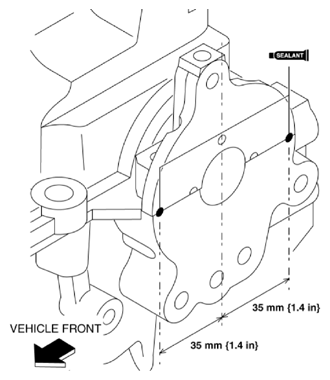

- Apply silicone sealant to the areas shown in the figure.
Courtesy of MAZDA MOTORS CORP.
Thickness
- 3.0-7.0 mm {0.12-0.27 in}
- Install the rear housing.
