U.S.A. And CANADA: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Level the vehicle.
Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
Drain the fuel. (See FUEL DRAINING PROCEDURE .)
Open the fuel-filler lid.

Remove in the order indicated in the table.

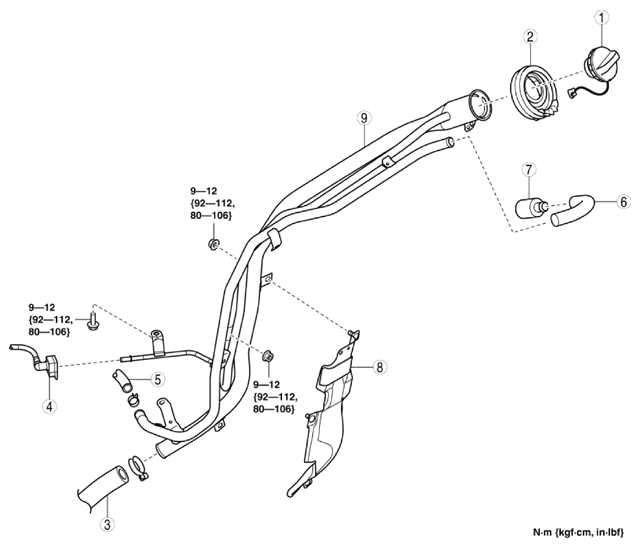

Fig 1: Fuel-Filler Pipe Related Components With Torque Specification - U.S.A. And Canada

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Fuel-filler cap
2	Dust cover (See Dust cover removal note .)
3	Joint hose (See Joint hose installation note .)
4	Quick release connector (See QUICK RELEASE CONNECTOR REMOVAL/INSTALLATION [SKYACTIV-G 2.0. SKYACTIV-G 2.5] .)
5	Evaporative hose No. 1
6	Evaporative hose No. 2
7	Plug
8	Fuel-filler pipe protector
9	Fuel-filler pipe (See Fuel-filler pipe removal note .)

Install in the reverse order of removal.
Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)
